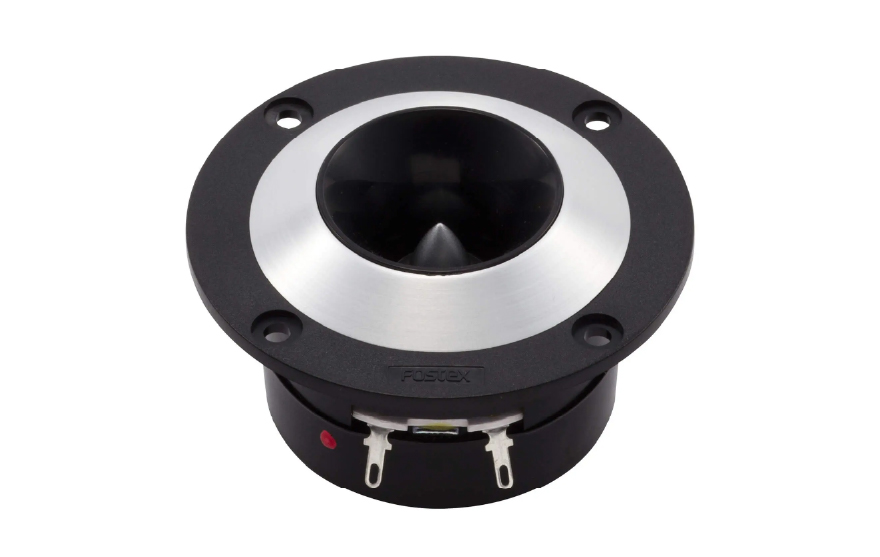

The FT17H, introduced in 1986, inherited the sharp and habit-free sound quality of its high-precision molded horn and aluminum diaphragm from its predecessor, the FT15H introduced in 1980, and has been supported as a long-selling super tweeter to this day.

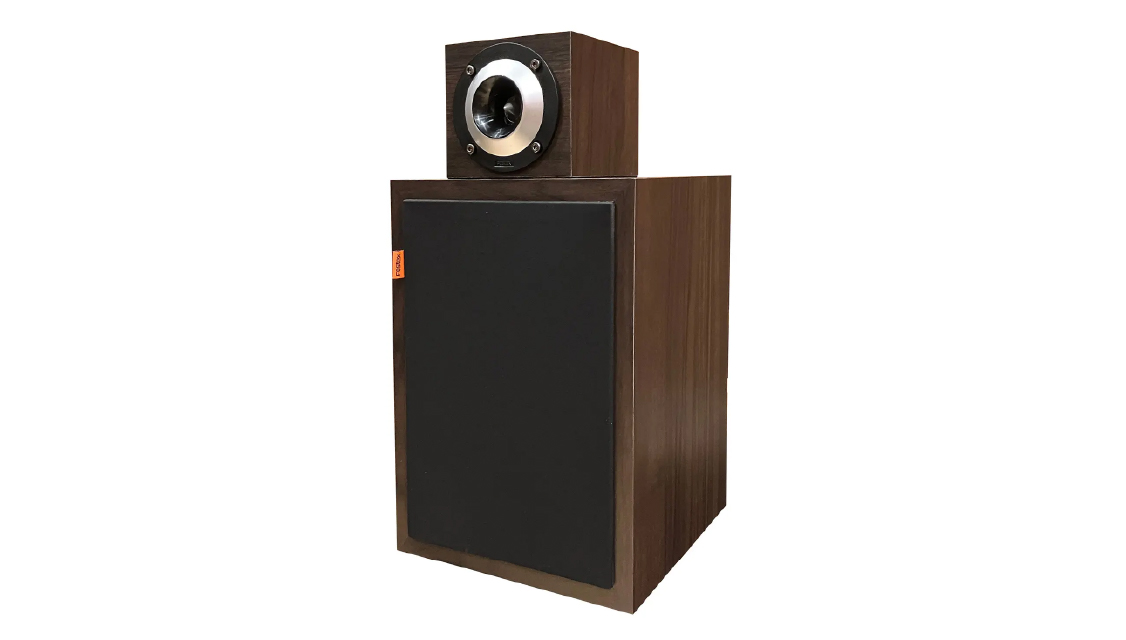

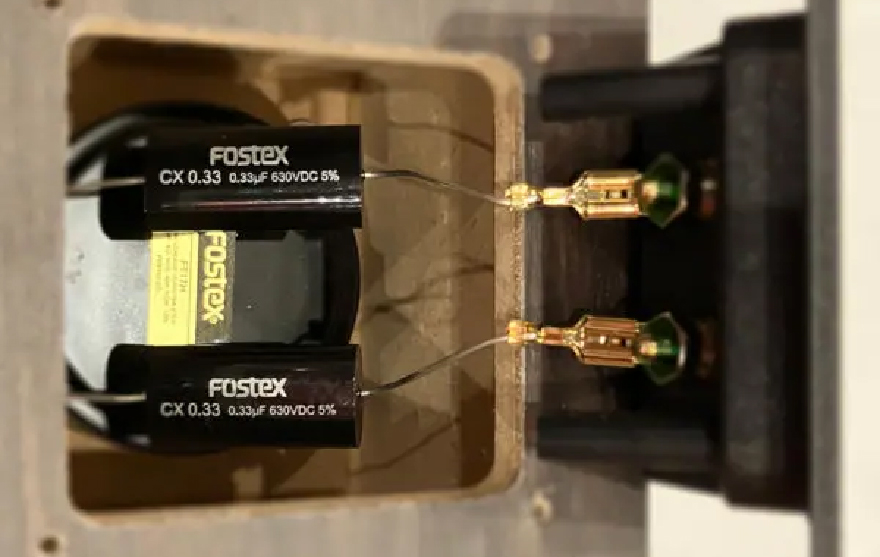

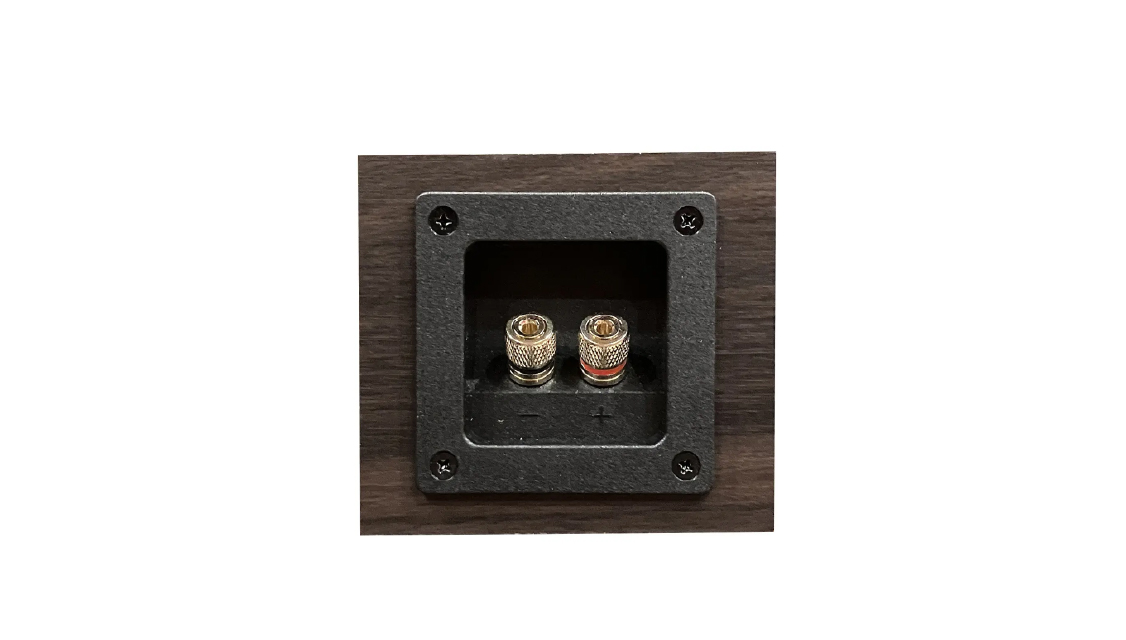

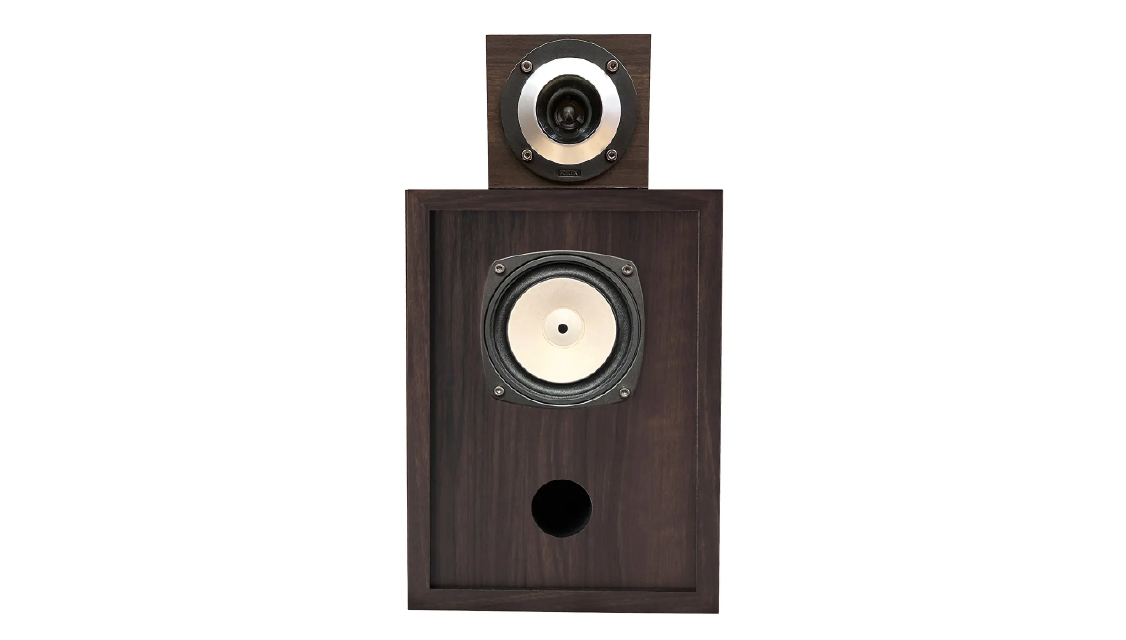

The FT17H incorporates a CX series condenser as a high-pass filter, which was selected through a series of cut-and-tries in search of the best sound quality connection. This eliminates the need for network component selection and wiring. Furthermore, setup is easily completed by simply placing it on the top panel of the GS103A-VB and connecting the included speaker cables to the terminals.

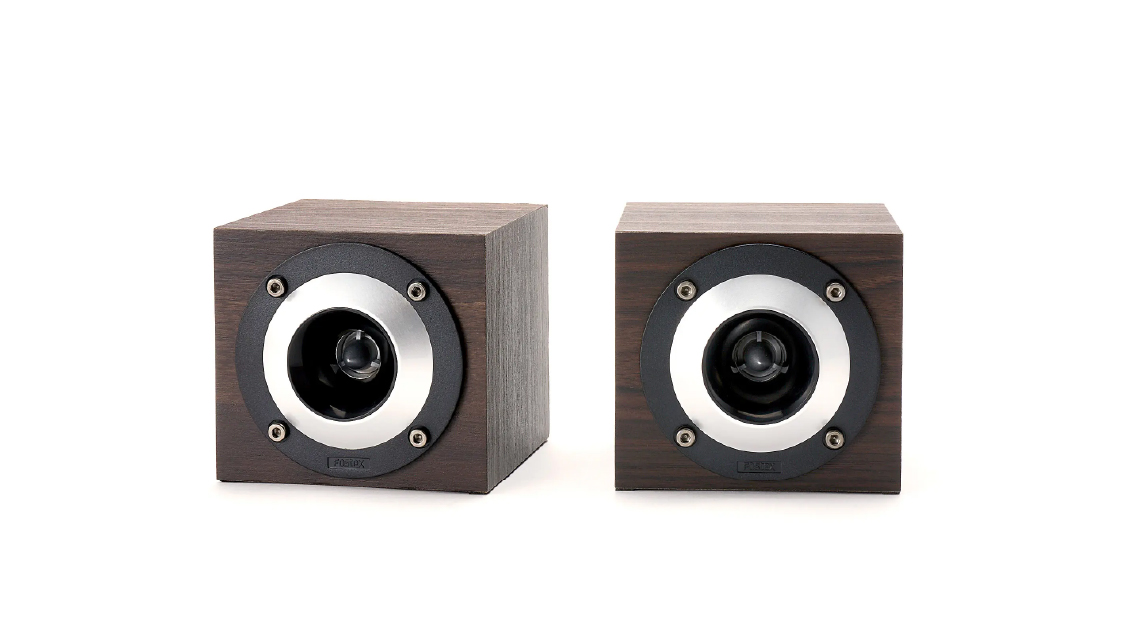

The enclosure is produced in Japan with the same English walnut finish as the GS103A-VB. It creates a sense of high quality unity in the entire add-on system.
Main Specifications
Impedance
8 Ω (*Value before passing through high-pass filter)
Frequency response
4 k ~ 32 kHz(-10 dB)
S.P.L.
76 dB/w(1m) (*Value after passing through high-pass filter)
Input
30 W(NOM.)
High-pass filter cutoff frequency
120 kHz ( -6 dB/Oct.)
Dimensions
104 (W) x 96 (H) x 118.5 (D) mm
Weight
685 g/unit
Material
MDF (finished with olefin laminated sheet)
Accessory
2 speaker cables, instruction manual, safety precautions
