Fostex

T90A-ST Horn Tweeter

The FOSTEX T90A-ST is a high-performance horn super tweeter based on the T90A, specially upgraded with a newly developed ring-shaped titanium diaphragm for improved sound quality. Combined with a low-distortion Alnico internal magnetic circuit, this tweeter achieves a wide frequency response range, offering smooth high-frequency extension and excellent transient response.

With a precision-machined thick-walled aluminum alloy cylindrical horn and equalizer, the T90A-ST delivers clear and penetrating sound expression. Its sound pressure is finely tuned for easy integration with various speaker systems, such as back-loaded horn systems, enabling a natural, transparent, and highly detailed soundstage.

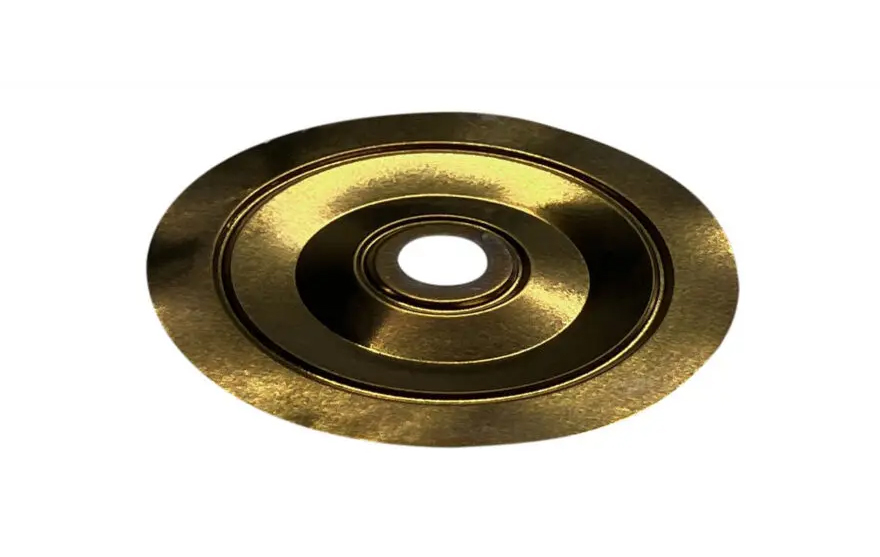

Newly Developed Ring-Shaped Titanium Diaphragm

The titanium diaphragm is formed into a ring shape, offering excellent transient response and clear, penetrating sound.

Low-Distortion Alnico Internal Magnetic Circuit



  • Utilizes an Alnico magnet, ensuring high magnetic flux density in a compact design.
  • Copper plating on the pole piece surface reduces current distortion for improved sound quality.



Thick-Walled Aluminum Alloy Horn & Equalizer

The precisely machined thick-walled cylindrical horn delivers natural and delicate sound quality.

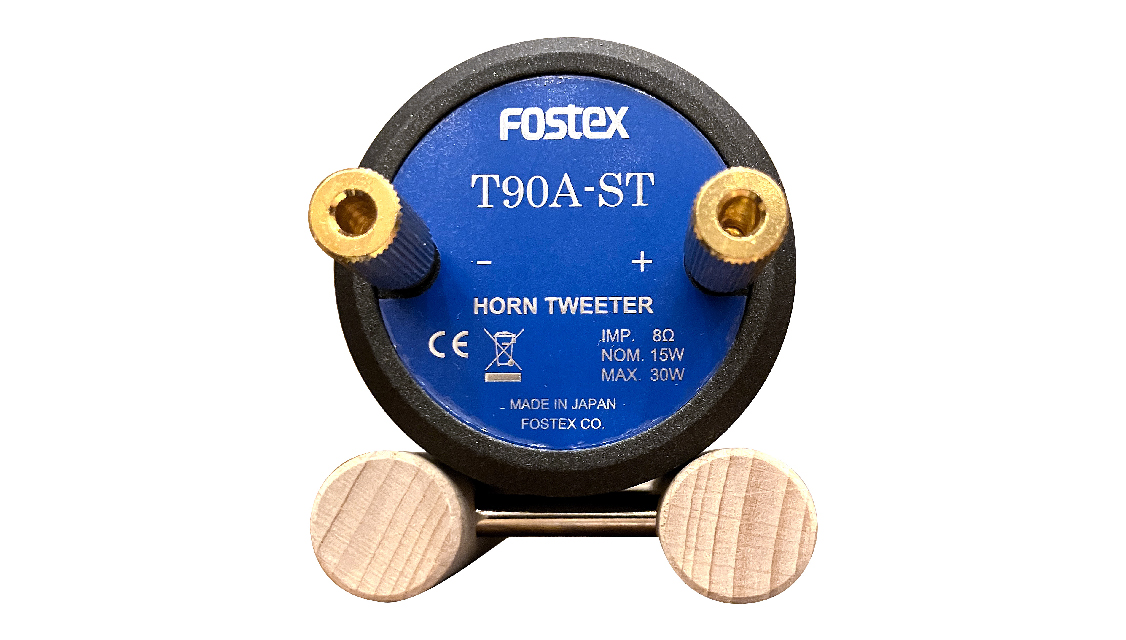

Gold-Plated Terminal & Copper-Silver Alloy Wiring

quipped with gold-plated terminals compatible with banana plugs; internal wiring uses φ1.4mm thick copper-silver alloy for enhanced sound quality.

Specifications

Impedance

8 Ω

Frequency Response

5 kHz ~ 20 kHz (-10 dB)

Rated Input Power

15 W (NOM)

Sensitivity

97 dB / 1 W (1 m)

Recommended Crossover Frequency

7 kHz(-12 dB/Oct.)

Input Power

100W

Magnet Weight

100 g(ALNICO)

Total Weight

805 g

Accessories

Base x1 / User manual x1
